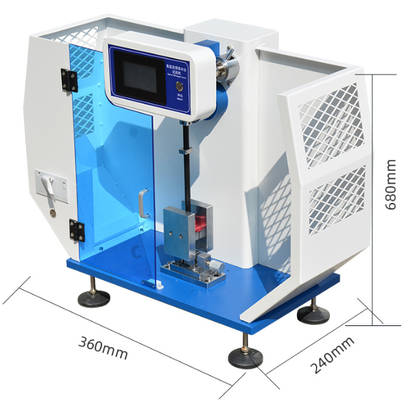

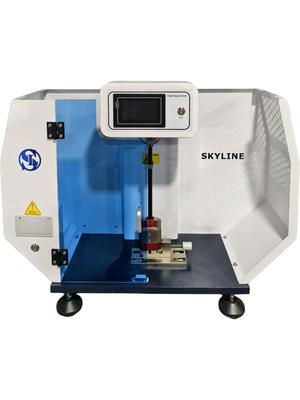

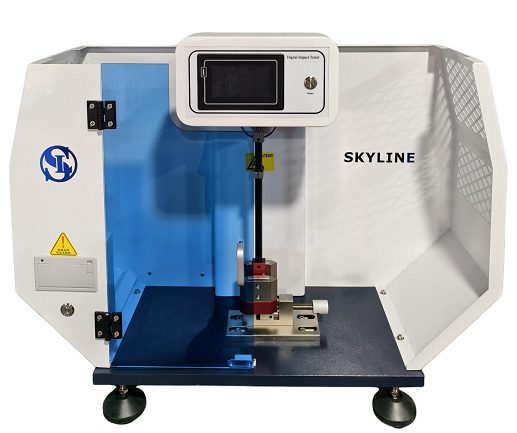

Izod & Charpy Impact Testing Machine for non-metallic materials

The Izod & Charpy impact tester determines the impact toughness of non-metallic materials including plastics, reinforced nylon, fiberglass, ceramics, cast stone, plastic electrical appliances, and insulating materials. This pendulum impact testing machine is essential equipment for quality inspection in research institutions, universities, and non-metallic material manufacturing facilities.

Featuring simple structure and convenient operation, this digital impact test machine delivers high precision results. It incorporates advanced encoder technology for exceptional accuracy, stability, and wide measurement range. The system automatically displays impact strength and average values, corrects for energy loss, and prints comprehensive test reports.

• ISO 180-2000 "Determination of impact strength of plastic-hard material cantilever beam"
• JB/T8761--1998 "Plastic Cantilever Beam Impact Tester"
• ASTM D256-2010 "Test Method for Determining Impact Strength of Plastic IZOD Pendulum"

• High-precision intelligent controller with LCD display for intuitive, accurate data reading
• Carbon fiber pendulum rod (domestic use) improves rigidity and focuses impact mass on pendulum centroid for vibration-free testing and extended service life
• Imported high-resolution digital encoder for superior angle test accuracy and stability
• Aerodynamic hammer design with imported ball bearings minimizes mechanical friction loss
• Automatic final result calculation with capacity to store 12 test data sets and averages
• Bilingual (Chinese/English) operation interface with multiple unit options: J/m, KJ/m², kg-cm/cm, ft-lb/in
• Built-in micro printer for immediate test data output
