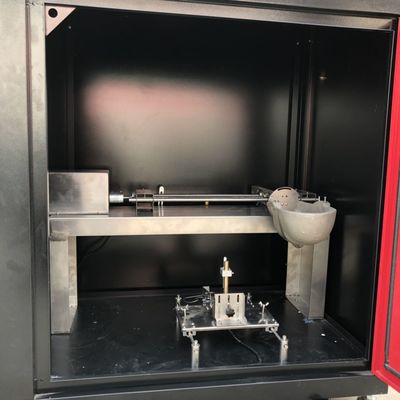

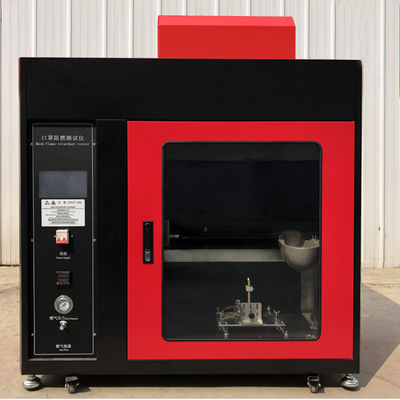

معدات اختبار القابلية للاشتعال قناع اختبار مثبطات اللهب

ماتيرايلز: الصلب

المعايير: ISO340

موقد بنسن: القطر الداخلي هو 10.5 ملم

زاوية دوران شعلة بنسن: 0 درجة ~ 45 درجة قابل للتعديل

إطار اختبار صغير من الفولاذ المقاوم للصدأ: 450×300×150ملم

الأبعاد الداخلية لإطار مسند الظهر: 450 ± 2 × 450 ± 2 مم

الأبعاد الداخلية لإطار الكرسي: 450 ± 2 × 300 ± 2 مم

رقصة اختبار كبيرة من الفولاذ المقاوم للصدأ: 450 × 450 × 300 ملم

Tested Wires Length: 600mm(24 In)

Thermocouple Type: K (Ni/Cr - Ni/Al)

Flame Burn Time: 15 seconds

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Burner Tube Internal Diameter: Φ 9.5mm±0.3mm

Construction Material: Stainless Steel

Tested Wires Length: 600mm(24 In)

Volume Of Chamber: >0.5m³

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Volume Of Chamber: >0.5m³

Product Category: Flammability Testing Equipment

Thermocouple Type: K (Ni/Cr - Ni/Al)

Product Category: Flammability Testing Equipment

Tested Wires Length: 600mm(24 In)

Gas Flow Controls: Precision

Interior Color: Black

Construction Material: Stainless Steel

Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appli

Standards Met: UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2

Thermocouple Type: K (Ni/Cr - Ni/Al)
