| الاسم التجاري: | SKYLINE |
| رقم النموذج: | SL-FL76 |
| مو: | 1 |
| السعر: | Negociate |
| شروط الدفع: | تي/تي |
| القدرة على التوريد: | 1 مجموعة / شهر |

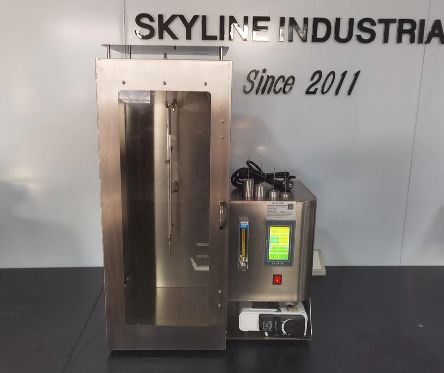

The Vertical Combustion Tester measures flame retardant properties of various textiles including woven fabrics, knitted fabrics, coated products, and laminated products. It determines the tendency of textiles to burn, smolder, and char.
Compliant with 16CFR 1615 (Size 0-6) and 16CFR1616 (Size 7-14) STANDARD FOR THE FLAMMABILITY OF CHILDREN'S SLEEPWEAR.
The sample is installed in the holder and hung vertically in the test instrument. After burning with a flame of specified height for a set duration, the instrument records afterburning, smoldering time, and damage length to evaluate combustion performance.
| Feature | Specification |
|---|---|
| Test box exhaust holes | Diameter 12.5mm (16 at top, 6 at lower part of each side) |

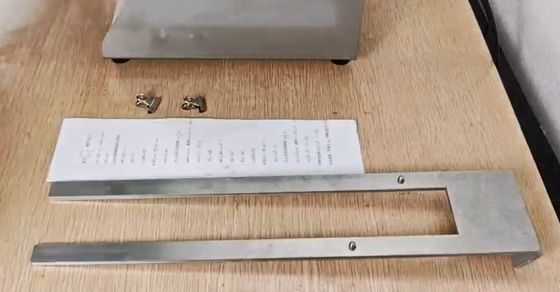

| Specimen holder | U-shaped, inner frame: 356mm x 51mm |
| Specimen size | 300mm x 80mm |
| Number of samples | 5 pieces each in warp and weft directions |
| Burner nozzle | Inner diameter 11mm, 25° from vertical line |
| Flame height | 40±2mm |
| Flame burning time | 12 seconds |
| Combustion gas | Industrial propane or butane |
| Heavy Hammer | 54.5g/113.4g/226.8g/340.2g |
| Dimensions (WxDxH) | 60cm x 40cm x 85cm |
| Weight | ≈35Kg |
| Power | 1∮ AC 220V 50Hz |
